Recording the scenarios using Record Scenario feature for a Desktop Application

TABLE OF CONTENTS

1. Overview

2. Recording a Scenario

 1. Overview

Record Scenario feature is used to record and save the workflow or scenario or use case. Scenario will be saved in the same sequence it has been recorded.

Note: Recording for the Record Scenario feature is done in offline model. It doesn’t interact with the live application.

User actions -Adding two numbers

1. Open calculator application
2. Select two numbers and click + button to add two numbers
3. Verify the addition of two numbers

2. Recording a Scenario

To record a scenario, perform the following:

1. Click on the node for which you have to record a scenario, click Record Scenario to view Record Scenarios pop-up window.

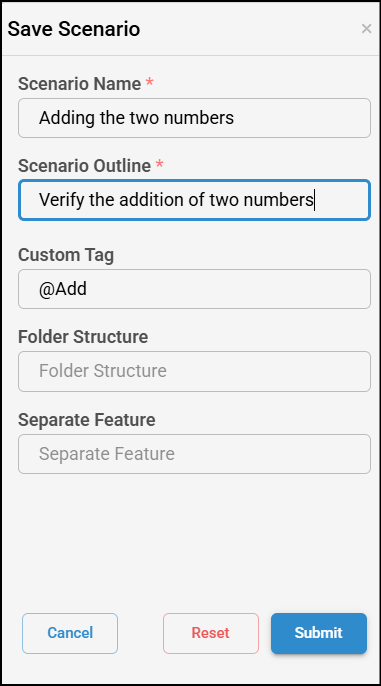

2. Enter the scenario name, outline and click Submit to create a sequence.

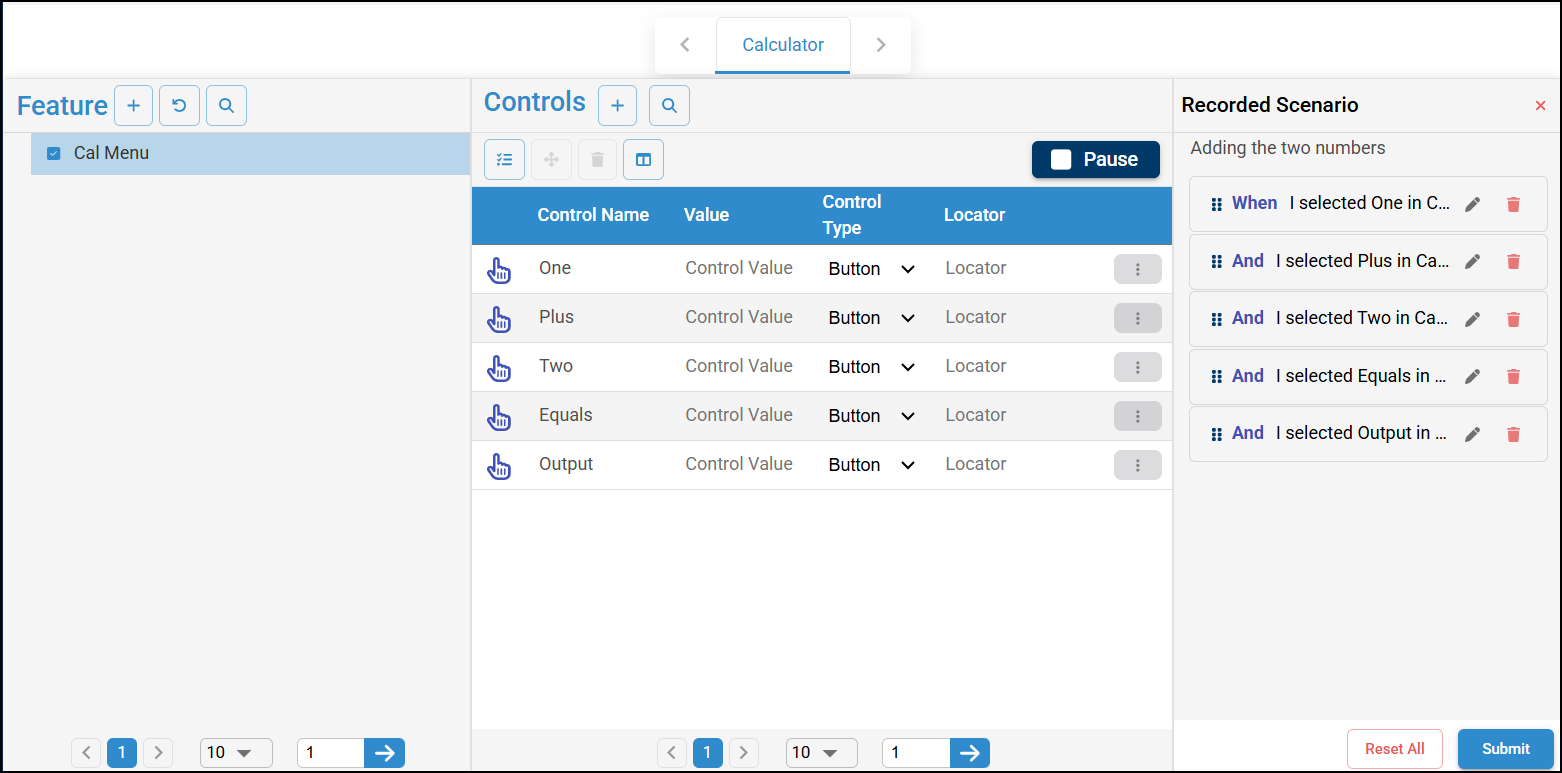

3. Select the required feature (Cal Menu ) under Node (calculator) to view all the added UI element details.
4. Similarly, select all the required features and the associated UI elements to create a sequence. Click Submit.
5. Once you click on Submit you will see a 'Scenario created successfully' message.
   Note that you can select multiple UI elements repeatedly in a single workflow.


6. When entering a value in the custom value and Message fields, adhere to the following:

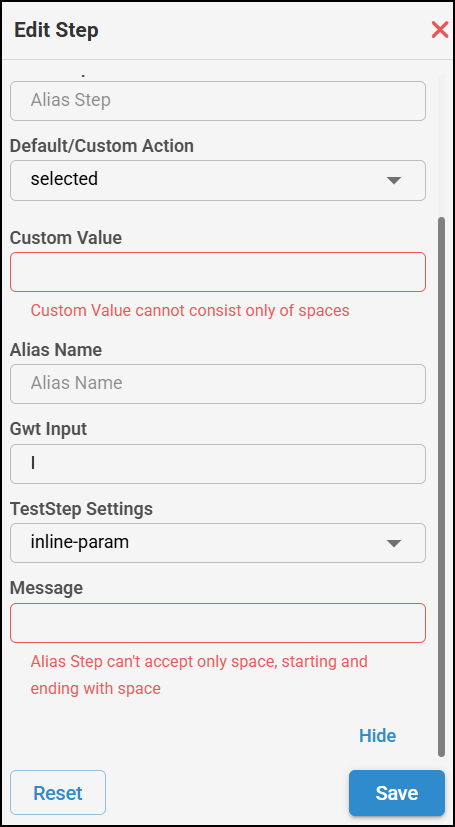

   • Custom value and message fields cannot be just blank spaces. If you wish to include spaces, you can use the keyword _empty_. For more information, see Keywords used in algoQA. If you enter the only spaces in any of the fields, then there will be a error message is displayed saying Custom Value cannot consist only spaces.
   • You can include spaces at between words.
