1. Overview

The Test Design workflow offers an efficient and organized approach for managing your test scenarios. By utilizing its various capabilities, you can easily update, arrange, and filter scenarios to meet your evolving testing requirements.

1.1 Relevant Use Cases

While Profiling the application, Test Design workflow is applicable for the following scenarios:

• Modifying Follow Me generated Test Cases: When you choose to modify or update a scenario in a test case that has been generated using Follow Me functionality.
• Accommodating Additional Requirements: When you need to modify an existing test case to accommodate additional requirements, such as updating test case steps.


2. Accessing the Test Design Feature

To begin using the Test Design feature.

1. Open your web browser, enter the  and navigate to https://algoshack.net > algoQA >Navigate to Test Design in left side panel.

Note: In the centralized project, concurrent users can use Save and Save as functionalities simultaneously without causing any issues with the set up files.

3. Test Design Workflow

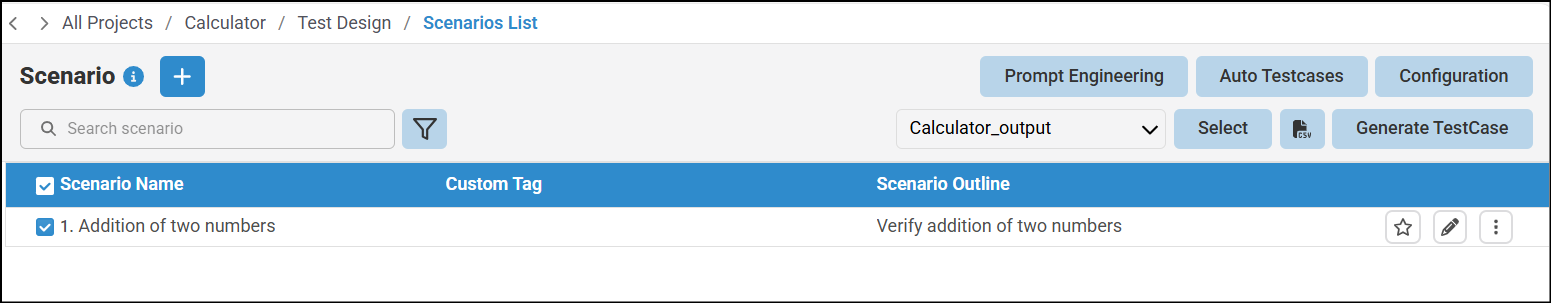

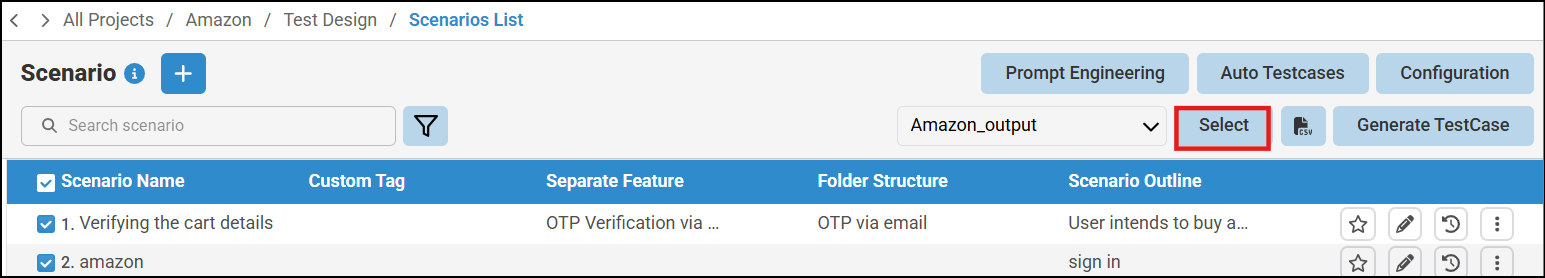

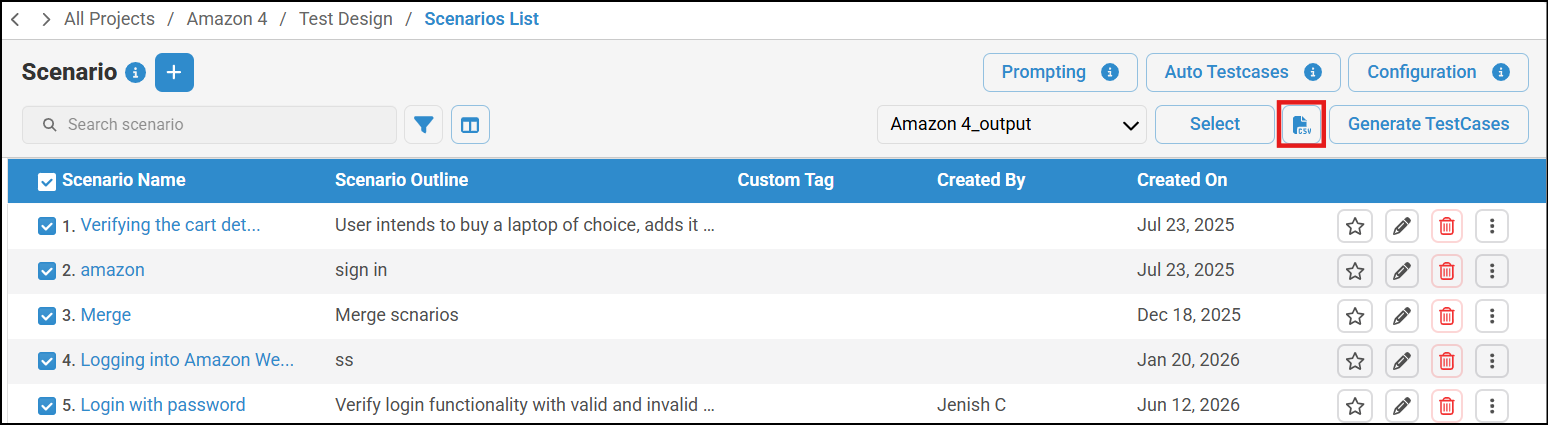

Test Design screen allows you to access and manage scenarios more efficiently. You will be able to view, add, search, filter and reset the scenarios.

1. Navigate to https://algoshack.net > In projects select a project or create one.
2. Click on Test Design after selecting a project.




Note: In a centralized project, when concurrent users work on the same scenario using the Test Design feature, the active user must save their changes. Until this is done, if another user tries to edit the same scenario, they will see a lock icon displaying the username and ID of the person currently editing the scenario. The another user must wait until the active user saves their changes and exits the feature using the back button.
In a centralized project, you can uncheck scenarios currently being worked on by another user in the Edit Scenario Feature and generate test cases.
Additionally, as an admin, you will be able to uncheck the scenarios in the Test Design screen and generate test cases.

4. Test Design Interface

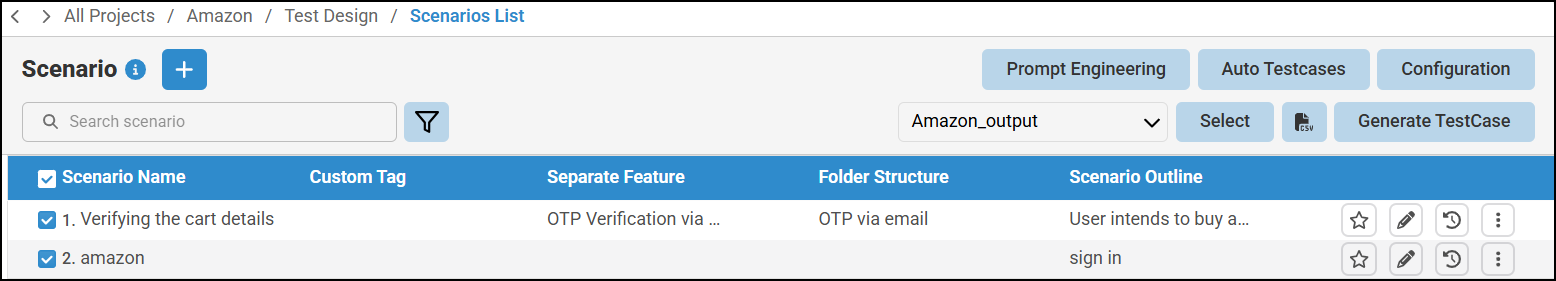

Upon accessing Test Design feature, you will see a comprehensive range of functionalities designed for scenario management.

Viewing and searching scenarios
You will be able to view and search through a comprehensive list of scenarios based on their scenario names, custom tags, outline, feature and structure. You can search for a particular scenario using keywords, or phrases to view the list of scenarios related to the search criteria.

Managing scenarios order

The following buttons are available on the top-right corner of the Edit Scenarios Form window.

• Resetting the search options - Click the 'X' button to view default settings after performing search criteria.

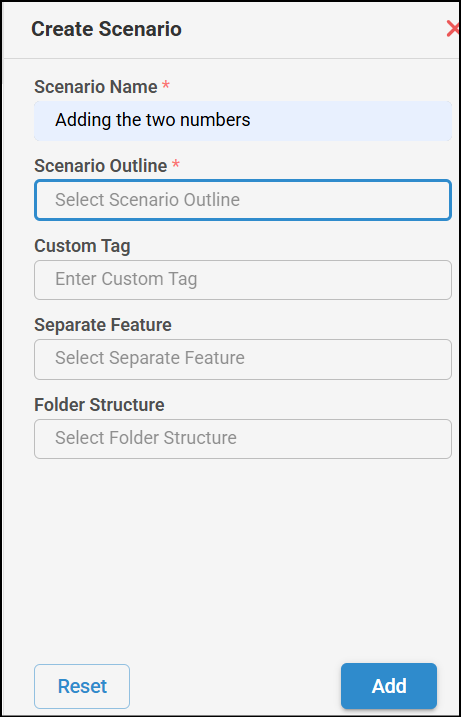

• Create new scenarios - Click the '+' button to add new scenarios.

  On the Add scenario section, if you provide an existing scenario name, an error message will alert you, saying 'Duplicate Scenario.' This means that the scenario name you entered already exists and cannot be used again. Ensure to choose a unique name for your scenario.

  You can update an existing GWT step or add a new one by adding alias step by clicking on edit icon besides GWT step.

  You can add comments by clicking on More Option>>selecting the Message. This text box is used when you are using the Karate Framework. The comments column provides additional notes about the test steps.

  When you add a new step, make sure you save the step to view Successfully added scenario message. Edit and delete buttons will be enabled only after saving the changes to the test steps.

Rearranging scenarios- This action can be performed in two ways:

1. Option1: Choose the appropriate number from the Up or Down dropdown lists and then click the more menu( 3 dots ) and click on move up or move down buttons.
2. Option 2: To drag and drop the scenario, press and hold the scenario to drag it to the appropriate location.
   Note: You can use Up and Down buttons by clicking the ‘More Actions’ next to the edit icon. This enables the rearrangement of the test cases, eliminating the need for drag and drop.

4.1 Editing and Deleting Scenarios

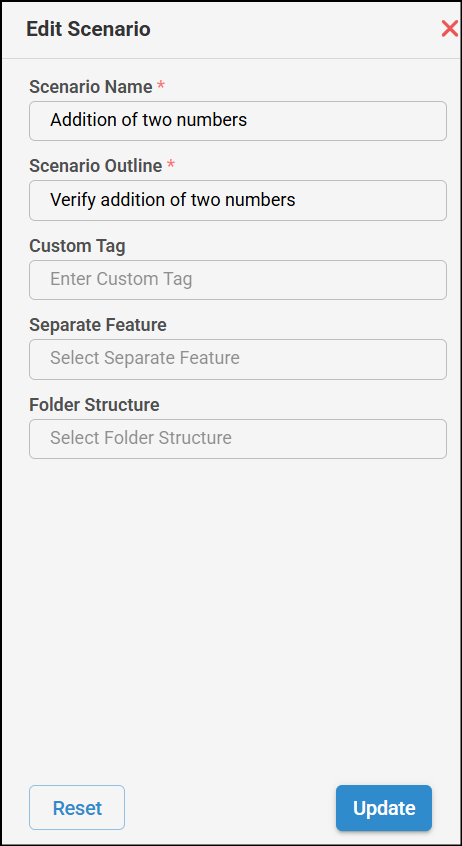

• To edit scenario, you can use edit icon located besides the ‘More Actions’ menu in the Scenarios List and Scenario Steps List, click on edit icon which is available between scenario name and search field, you can rename a Scenario Name. Once you've made changes, click on update button.
• To delete a scenario, you can click on more menu and click delete scenario button.



4.2 More Actions Menu

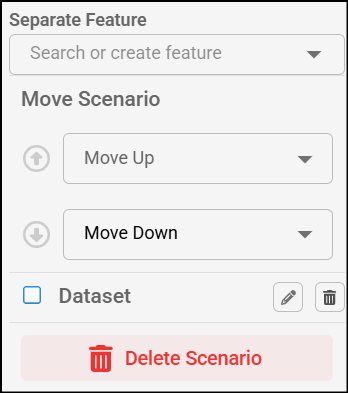

Click the More Menu ( 3 dots ) to access more actions as follows:

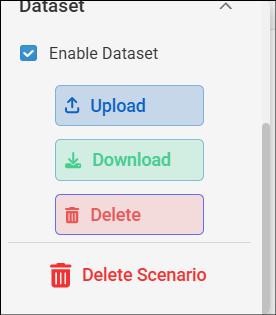

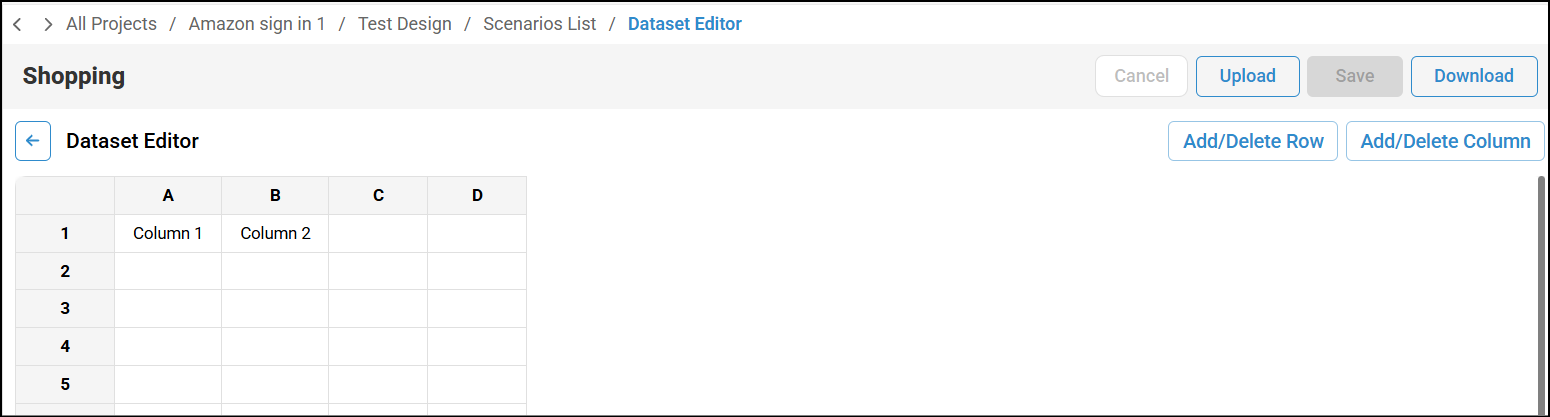

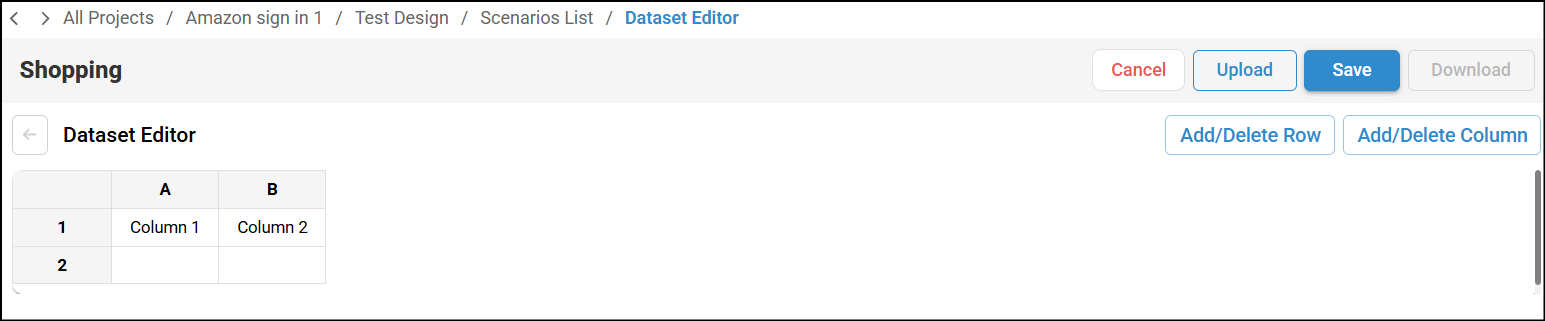

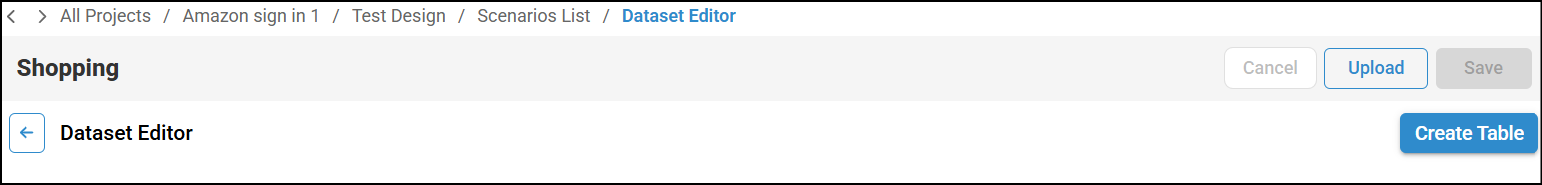

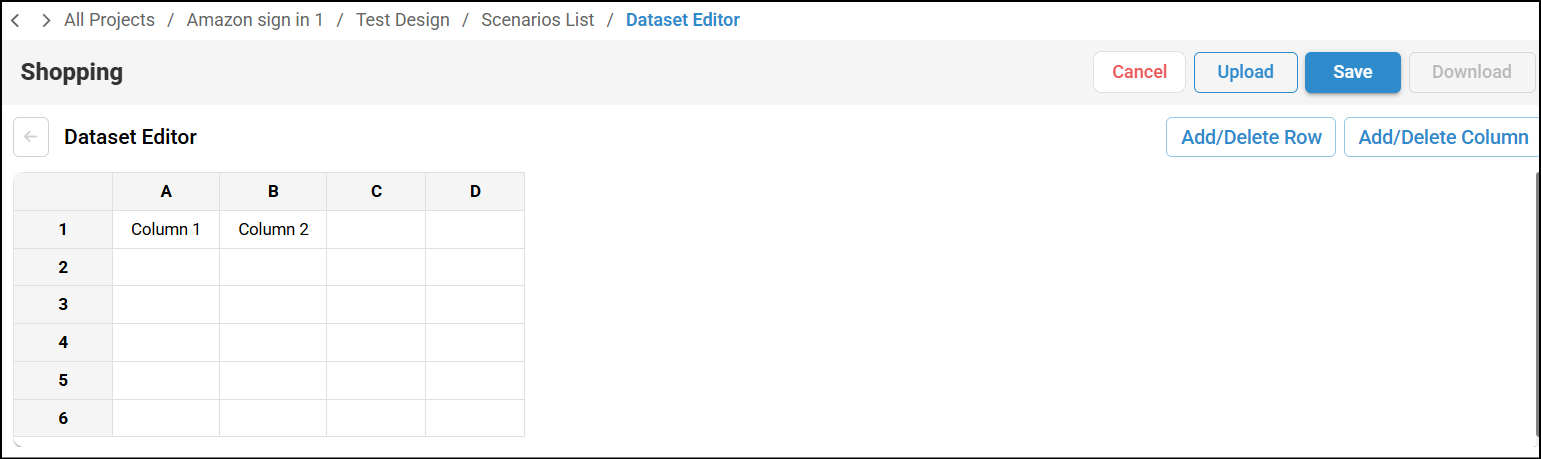

Upload dataset- You can upload datasets in the CSV format. Ensure to select the same scenario which was created using Follow Me feature.  Dataset option - When checked, this option allows you to generate datasets that were uploaded recently. When unchecked, the system will generate default datasets. Download dataset - Easily download datasets in the CSV format. Note that Download and Delete buttons will be enabled after uploading the datasets. Delete dataset - Remove datasets as needed.

4.3 Adding or editing Given-When-Then lines (GWT) for individual steps

In the Scenario Steps List, you can add or edit 'Given, When, Then' lines for individual steps in the Edit step screens. This functionality aligns with the structure found in the generated Feature File, providing you with an intuitive experience.

To add individual steps to the GWT lines, perform the following:

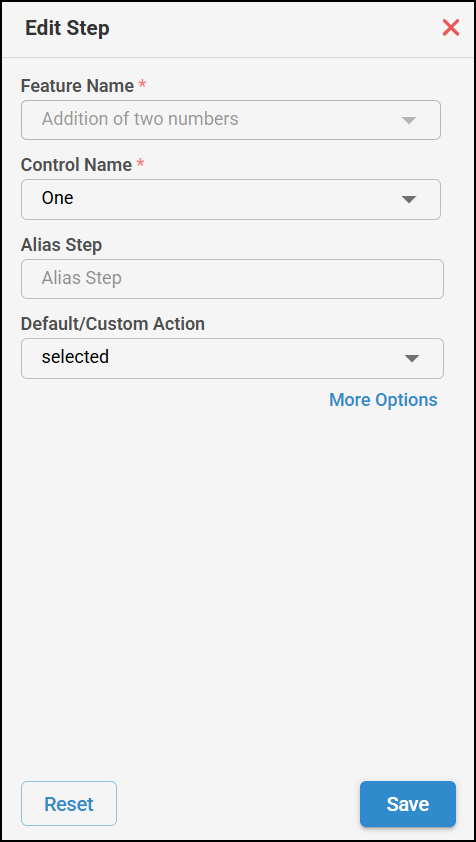

1. In the Scenario Steps List, click edit icon besides GWT step to view the Edit step.

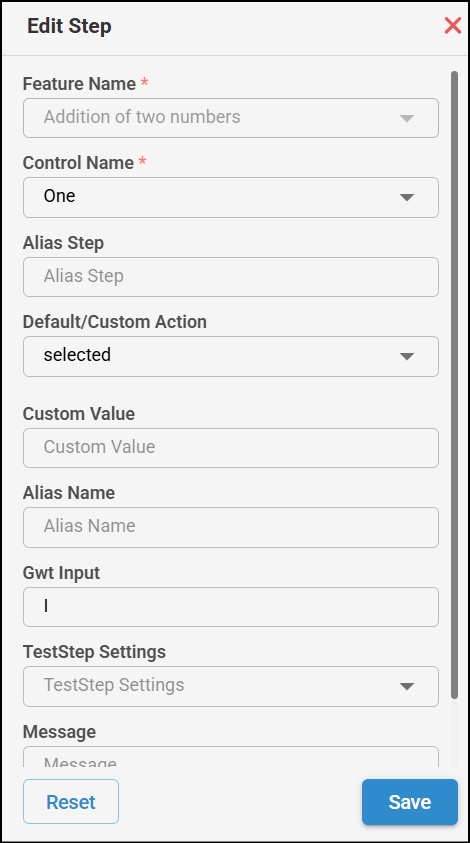

2. In this screen, you can click on more options to expand edit step form

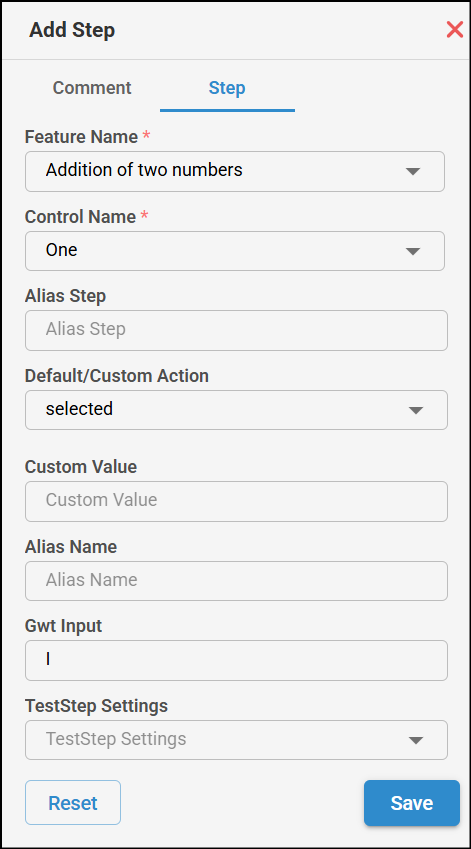

3. In the Scenario Steps List, click plus icon to add a new step, select the appropriate feature, control type from the dropdown list. Click on save and save the changes. You can click on More Options to add alias step and required details. Refer to the next section.
4. In the Scenario Steps List, click edit icon besides GWT step to view the Edit step. Here, you can update the UI element name (control name).
   Note that delete and add icons are disabled. These buttons will be available after saving the changes.
5. Ensure to save the changes by clicking the Save button. You can view the message Data saved successfully.



Additionally, you can provide custom values into GWT Input textbox in the Project Settings page.
To access Project Settings page > navigate to the Main Canvas > Gear icon.

5.4 Adding an Alias Step

You can use this functionality when you are adding manual steps. You can add a new step or edit an existing step.

To add an alias step, perform the following:

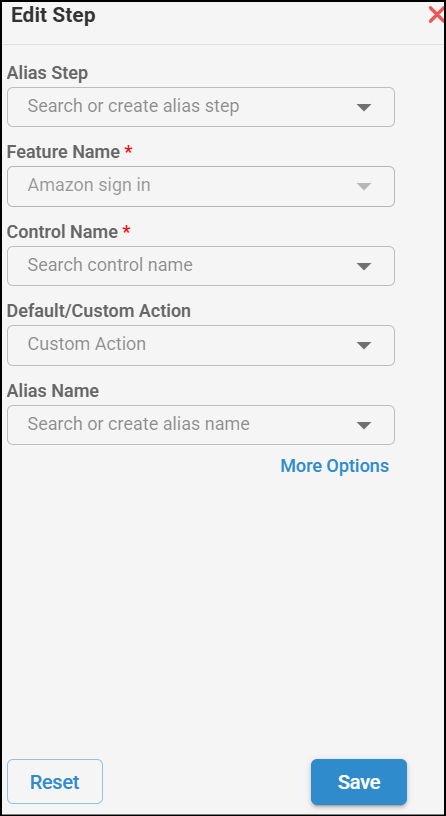

1. Click the GWT steps in the Scenario Steps List screen and click More Options to view the details.

2. After entering the alias step, Custom Value, TestStep Settings, Alias Name and GwtInput text boxes will be disabled.
3. If you wish to provide alias name for the controls, then you can enter the alias name and other required details and save the details.

   Note that if you are entering any custom values into the 'Custom Value' text box, and if you provide the value in DOUBLE_QUOTE<value>DOUBLE_QUOTE format then you will see the custom value with double quotes generated in the Example table of the Feature File.

   If you provide custom values into the Custom Value text boxes in this format "<value>", these values will appear in the Feature File without the double quotes.



Custom Actions and alias step are highlighted in a distinct color for easy identification. To use a Custom Action, refer to the article Using Custom Actions.

4.4 Filtering Scenarios

The Filter section of the Edit Scenarios feature provides a convenient way to sort and display scenarios based on specific criteria, enabling you to customize their view according to their needs.

Access filtering options via the filter icon.

Following is an overview of the available filter options:

• Reset option: The Reset functionality operate in the same manner as described in the previous section.
• Filter types: You can utilize a range of filter types to categorize scenarios according to different attribute. These options include:

• Selected: Check this box to view a comprehensive list of all selected scenarios.
• Unselected: Check this box to view a list of unselected scenarios that have not been chosen.
• All: By selecting this option, you can view both selected and unselected scenarios in a unified list.
